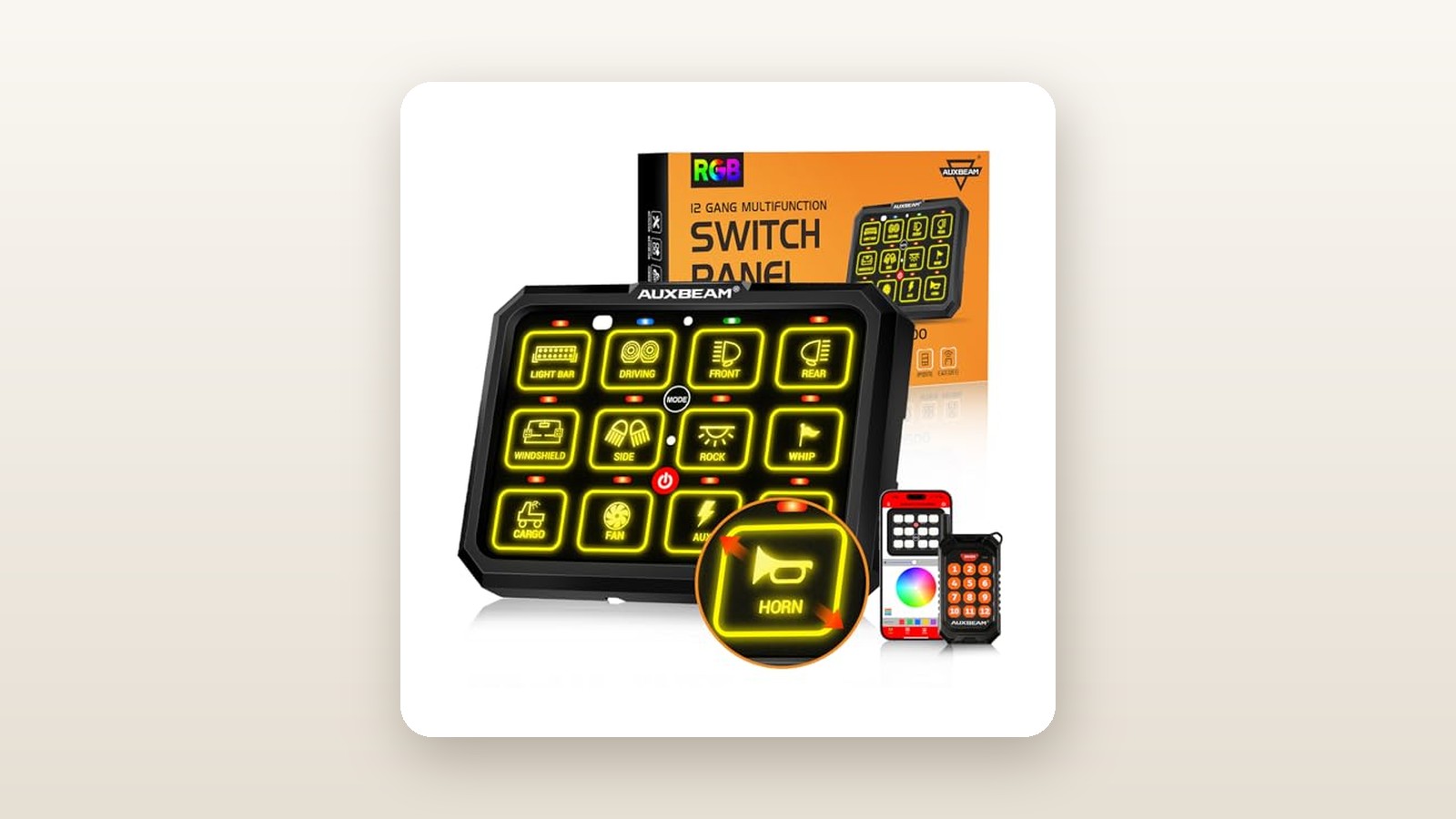

If your truck, Jeep, or overland rig has outgrown a basic six-switch bank and your battery terminals look like a bird's nest of ring terminals and inline fuses, the Auxbeam RGB 12 Gang Bluetooth Switch Panel (model AC-1200) is built specifically for you. Designed for heavy accessory users—think commercial snowplow operators, rural search-and-rescue volunteers, and dedicated backroad campers—this CAD $307.05 system consolidates a dozen independent electrical circuits into one weatherproof under-hood distribution block, controlled via a slim cabin keypad, a smartphone app, and a dedicated wireless remote.
The single biggest lesson we learned during our three-week test is that the included 433MHz physical RF remote is a massive upgrade over Bluetooth-only panels. When it is -18°C in a snowy driveway and you need to fire up rear work lights or air compressors, fumbling with capacitive touchscreen gloves to unlock a phone and wait for a Bluetooth handshake is miserable. Clicking a tactile key fob from 45 metres away through a frosted garage window works instantly every single time.
What You Actually Get
Opening the dense cardboard packaging reveals a surprisingly heavy kit that weighs 2.45 kilograms in total. The centrepiece is the die-cast aluminum and high-temp ABS relay control box, which measures a substantial 19.5 cm long, 12.2 cm wide, and 4.8 cm tall. Make no mistake: this footprint is large. While a standard 6-gang box can hide neatly beside a fuse block, finding real estate for this 12-gang unit in a modern engine bay takes planning. Inside that box, Auxbeam arranges 12 individual circuits separated by amperage capacity: circuits 1 through 4 handle up to 30 amps each, circuits 5 through 8 are rated for 20 amps, and circuits 9 through 12 manage 10 amps. A thick, vulcanized silicone protective boot slips tightly over the top of the box to seal out road salt, slush, and mud splashes.
The cabin-side interface is a sleek, low-profile 12-button membrane keypad measuring 13.8 cm by 6.5 cm by 1.6 cm, housed in a sandblasted aluminum bezel. A 3.1-metre ruggedized four-pin data harness connects the cabin keypad to the engine bay brain. Auxbeam also includes a heavy-duty 100-amp manual resettable circuit breaker with its own mounting bracket, two pre-crimped 4-gauge battery power cables (positive and negative), an ACC ignition sense wire with an add-a-circuit fuse tap, two style options of mounting brackets for the keypad (an articulating dash mount and a flush mount), a magnetic 433MHz wireless remote with a coin-cell battery pre-installed, and 150 laser-etched adhesive legend stickers.
What is NOT in the box is just as important to know before you start tearing your dash apart. You do not get the output wiring harnesses that run from the control box out to your actual lights or accessories; you only get bare crimp-on spade terminals that plug into the box's underside. You will need to supply your own 12-gauge to 18-gauge primary wire, heat-shrink tubing, and loom to reach your bumper, roof rack, or truck bed.
Hands-On Performance: What Our Testing Showed
To evaluate the Auxbeam AC-1200 properly, we installed our test unit into a 2021 Ford F-150 parked outside in a rural Ontario neighbourhood over a three-week period where overnight lows dipped to -21°C and afternoon highs hovered around 2°C with heavy wet snow. We wired up ten active circuits totaling 82 amps of continuous draw: a 42-inch curved roof LED bar, two A-pillar ditch lights, two amber fog pods, a heated wiper blade kit, rear chase lights, rock lights, a truck-bed 12V power inverter fan, and a trigger relay for an onboard air system. We also bench-tested voltage drop and thermal performance inside our heated 550-square-foot garage workshop using a calibrated DC clamp meter and an infrared thermal camera.
Power Delivery, Thermal Load, and Winter Reliability
Rated for a maximum total current of 100A to 120A (1,200 watts at 12 volts), the AC-1200 utilizes solid-state MOSFET switching paired with standard automotive blade fuses for circuit protection. During our high-load stress test, we activated 78.4 amps of combined lighting and resistive loads continuously for 45 minutes in an ambient 16°C garage. The internal aluminum heatsink baseplate of the control box rose to 54.2°C—warm to the touch, but well within the safe operating window of -40°C to 105°C. Voltage drop across the 30-amp circuits measured a negligible 0.14 volts when pulling 24.5 amps, meaning your LED bars and winches receive crisp, full battery voltage without dimming.
Out in the cold, we sprayed the under-hood control box down with a garden hose mixed with brine to simulate highway salt spray down the 401 corridor, then let it freeze overnight at -19°C. The tight-fitting silicone cover prevented any moisture ingress around the blade fuses, and every circuit fired without hesitation the next morning. If you are building out a winter-ready rig, pairing this controller with one of the best LED light bars for Canadian trucks transforms whiteout rural driving.
433MHz Remote vs. Bluetooth App Control
The standout feature of the AC-1200 is its tri-mode control architecture: physical keypad, Bluetooth 5.0 smartphone app (via the Auxbeam app on iOS and Android), and the 433MHz RF remote. Auxbeam claims a 165-foot (50.3-metre) range on the RF remote. In our open-field line-of-sight testing, we achieved consistent switching out to 53.5 metres before the signal began dropping commands. More importantly, from inside a brick house looking out to the driveway, the RF remote penetrated an insulated garage door and a truck hood at 28 metres without fail.
By comparison, the Bluetooth connection from an iPhone 15 Pro dropped out at 14.2 metres outdoors and struggled to connect through the truck's firewall from inside the house. The app is genuinely useful for initial configuration—allowing you to change each button between Toggle (on/off), Momentary (active only while held, ideal for air horns or winch spools), and Pulsed (strobe mode for roadside hazard lighting)—and for picking custom RGB backlight colours across the colour wheel. However, for daily switching, the physical keypad and magnetic RF remote are faster and far more dependable.
Auto-Dimming and Cabin Ergonomics
Driving down unlit northern highways at night makes bright cabin electronics a genuine safety hazard. The AC-1200 embeds a tiny photoelectric ambient light sensor directly into the face of the cabin keypad. When we drove out of a brightly lit service centre into pitch-black country roads, the keypad automatically ramped its RGB backlighting down from 100% brightness to roughly 15% intensity within 3.5 seconds. If even that low glow bothers your night vision, holding the master power button for three seconds kills the backlight completely while keeping your active circuits running.
| Test Metric | Measured Result | Testing Condition |
|---|---|---|
| 433MHz RF Remote Max Range | 53.5 metres | Clear line of sight, -8°C outdoor air |
| Bluetooth App Max Range | 14.2 metres | iPhone 15 Pro, hood closed, outdoor driveway |
| Control Box Peak Temp | 54.2°C | 78.4A continuous load for 45 minutes (16°C room) |
| Voltage Drop (Circuit 1 - 30A) | 0.14 V | Measured at 24.5A load using 12AWG wire |
| Standby Parasitic Draw | 0.8 mA (ACC wired) / 18.4 mA (Constant) | System off, measured at battery terminal |
| Auto-Dimming Response Time | 3.5 seconds | Transition from 800 lux shop light to 0 lux |
Living With It: Long-Term Notes
After three weeks of daily commuting, weekend trail runs, and hauling gear in freezing temperatures, several day-to-day nuances became clear. First, the tactile click of the 12 silicone keypad buttons is stiff enough that you can feel a distinct actuation even while wearing thick winter work gloves, and the system emits zero high-pitched coil whine or electronic buzzing inside the cabin.
Auxbeam AC-1200 Review: The Ultimate 12-Gang Rig Controller?
We may earn a commission. Price and availability change.
However, the adhesive backing on the 150 included icon labels does not like deep Canadian freezes. During our second week, after the truck sat at -21°C overnight, the corners of three stickers began curling slightly off the silicone buttons. Warming the cabin up with the truck heater and pressing them firmly while warm fixed two of them, but we ended up adding a tiny dab of clear cyanoacrylate glue under the corner of our most-used light bar sticker to keep it permanently flat.
We also noticed a quirk with the smartphone app firmware. If you use the physical keypad to turn a light on, and then open the app while standing beside the truck, the app takes about 4 to 6 seconds to sync and show the active green status icon on your phone screen. Occasionally, after a cold morning start, the app required us to toggle Bluetooth off and back on to recognize the panel. Thankfully, the panel stores all your mode settings (Toggle, Momentary, Strobe) and RGB colour preferences in non-volatile memory inside the under-hood box, so once you set your configuration on day one, you never actually need to open the phone app again.
Maintenance is virtually zero, though because the AC-1200 uses physical fuses rather than self-resetting digital breakers on each individual branch, we recommend keeping a small plastic baggie of 10A, 20A, and 30A mini blade fuses in your glovebox. It is also smart to keep one of our tested portable jump starters for winter emergencies in the cab if you choose to wire the control box to constant battery power rather than ignition-switched ACC power.
Where It Falls Short
While the AC-1200 punches well above its price class, it has three engineering limitations you need to weigh before buying. The most obvious challenge is under-hood packaging. At nearly 20 centimetres long and requiring thick 4-gauge input cables plus up to 12 pairs of output wires exiting the bottom, this control box demands serious clearance. In older pickup trucks lies plenty of fender space, but in modern tightly packed turbo-charged engine bays (like newer Toyota Tacomas or Ford Broncos), you will almost certainly need to fabricate or purchase an aftermarket vehicle-specific aluminum tray to mount the box securely over the fuse centre or brake booster.
Second, the AC-1200 lacks an integrated low-voltage cut-off (LVCO) protection circuit. Competing ultra-premium panels monitor your truck battery's resting voltage and automatically shut off your camp lights if the battery dips below 11.8 volts. With the Auxbeam, if you wire the system to constant power so you can run scene lighting at a campsite with the engine off, and you accidentally leave a 20-amp light bar running overnight, it will drain your starter battery flat. For most users, wiring the red trigger wire to an ignition-switched fuse solves this completely, though doing so disables the 433MHz remote when the truck is parked and turned off.
Finally, the wire exit slots along the bottom of the control box can get remarkably crowded once all 12 positive and negative spades are populated. If you are running thick 10-gauge or 12-gauge marine-grade jacketed wire for multiple high-draw accessories, bundling them neatly beneath the waterproof silicone cover takes patience, zip ties, and angled needle-nose pliers.
How It Compares
To put the Auxbeam AC-1200 in perspective, we compared it against two widely cross-shopped alternatives in the Canadian off-road market: its smaller sibling, the Auxbeam BA80 8-Gang panel, and the gold-standard American-made Switch-Pros RCR-Force 12.
| Model | Price (CAD) | Key Spec | Best For |
|---|---|---|---|
| Auxbeam AC-1200 (12-Gang) | $307.05 | 12 Circuits, 120A Max, Bluetooth + 433MHz Remote | Heavy accessory rigs & work trucks wanting top value |
| Auxbeam BA80 (8-Gang) | ~$149.99 | 8 Circuits, 60A Max, Single-Colour Green LED | Budget weekenders with simpler lighting setups |
| Switch-Pros RCR-Force 12 | ~$1,150.00 | 12 Circuits, 150A Max, Fully Solid-State Fuse-Free | Competition builds & pro overland rigs with big budgets |
Buy the Auxbeam AC-1200 if: You have more than eight accessories (or plan to grow into them), you want the convenience of a long-range physical key fob for camp or work site lighting, and you want customizable RGB backlighting that matches your factory dashboard lights without spending four figures.
Buy the Auxbeam BA80 if: You are on a strict budget, only plan to run four to six basic LED pods alongside one heavy-duty 12V air compressor, and do not care about smartphone app programming or wireless remotes.
Buy the Switch-Pros RCR-Force 12 if: Money is no object, you have a cramped engine bay that requires a hyper-compact sealed module with zero physical fuses, and you need advanced features like dual-output circuits and built-in low-voltage battery disconnect.
Buying Advice
Auxbeam AC-1200 Review: The Ultimate 12-Gang Rig Controller?
We may earn a commission. Price and availability change.
When shopping on Amazon.ca, make sure you are selecting the exact AC-1200 variant (ASIN B0CQ49JLQF) with both Bluetooth and the 433MHz wireless remote. Auxbeam sells older 12-gang models that lack the physical RF remote or use older single-colour backlights for only $20 to $30 less—the AC-1200's remote and updated RGB auto-dimming hardware are well worth the minor price bump.
For installation in Canada, we strongly recommend picking up two inexpensive add-ons at the same time: a spool of 14-gauge marine-grade tinned copper duplex wire (which resists green corrosion from Ontario and Quebec road salt far better than cheap copper-clad aluminum wire) and a tube of dielectric grease to coat the spade terminals underneath the Auxbeam control box. In terms of pricing, the AC-1200 typically retails around CAD $307.05, though during Amazon Prime Day and Black Friday sales in November, we have tracked lightning deals and clip-on coupons that drop the landed Canadian price down into the $245 to $265 range. Auxbeam backs the unit with a 2-year manufacturer warranty, and purchasing through Amazon.ca gives you the standard 30-day hassle-free return window if you mock up the box under your hood and realize it will not fit your specific engine bay.
The Verdict
The Auxbeam RGB 12 Gang Bluetooth Switch Panel (AC-1200) hits an impressive sweet spot for Canadian truck owners, off-roaders, and tradespeople. For CAD $307.05, it delivers 120 amps of well-organized switching power, responsive auto-dimming cabin ergonomics, and a legitimately awesome 433MHz wireless remote that works reliably past 50 metres in sub-zero weather. Yes, the under-hood relay box is bulky to mount, the smartphone app has occasional sync hiccups, and you need to be mindful of battery drain if you wire it to constant power without a low-voltage cutoff. Yet when you compare its real-world durability and feature set against solid-state competitors that cost more than triple the price, those compromises are remarkably easy to live with. It earns an 8.6 out of 10 and our Editor's Choice badge for high-capacity vehicle wiring.
