If you spend your weekends navigating narrow logging roads in the Canadian Shield or commuting down unlit northern range roads at dawn, standard factory headlights leave a dangerous blind spot right off your front fenders. The Auxbeam V-Ultra Series 5-Inch Side Shooter LED Pods are engineered specifically for truck, Jeep, and UTV owners who need both long-distance down-trail punch and extreme peripheral ditch illumination without mounting four separate light pods across the hood.
After three weeks of testing these 5-inch round pods through freezing slush, dense bush trails, and sub-zero night runs, the single biggest takeaway is that the angled side-shooter diodes are far more than a styling gimmick. They genuinely bridge the dark gap between your vehicle's A-pillars and the main headlight beam, illuminating eye shine from deer or moose standing in the ditch long before they step onto the gravel.
What You Actually Get

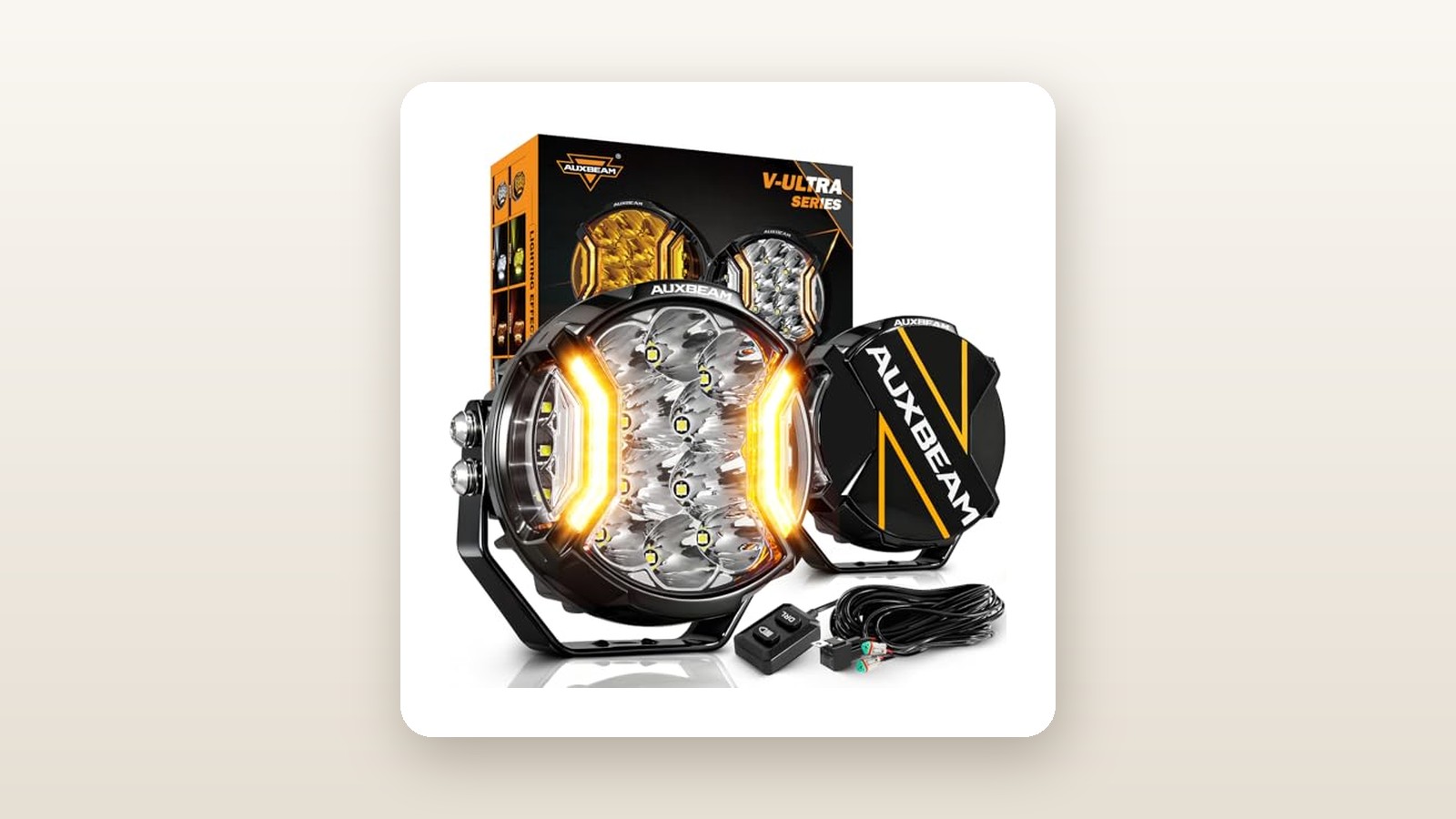

Opening the box reveals a surprisingly comprehensive kit for CAD $237.18, a price point where many competing brands charge extra just for a basic relay harness. Inside the dense foam cutouts, you get two 5-inch V-Ultra round LED pods, two sets of polycarbonate snap-on lens covers (one pair of solid black knockouts for street compliance and one pair of translucent amber covers for snow and dust), heavy-gauge stainless steel U-brackets, all necessary mounting bolts, and a complete 3.2-metre DT-connector wiring harness.
Picking up one of the pods immediately communicates serious mass. Each lamp weighs 1.12 kilograms on our shop scale with the mounting bracket attached. The housings are cast from thick 6063 aluminum alloy finished in a matte black powder coat that resisted chipping when we accidentally dropped a 14 mm wrench onto the casing during installation. Across the back, 11 deep heat-sink fins provide substantial surface area for thermal dissipation, along with a genuine military-style breather valve designed to equalize internal air pressure and prevent condensation buildup.
Dimensionally, these are substantial units that require proper clearance checks before you buy. Each pod measures 12.9 centimetres in diameter, stands 15.1 centimetres tall when bolted to its base bracket, and measures 7.4 centimetres deep from the front polycarbonate lens to the back of the cooling fins. Looking at the front face, the optical layout is dense: six central projector-style cups handle the focused 30-degree spot beam, flanked by dual outer banks of three small emitters angled outward to achieve the advertised 270-degree spread. Framing the central optics is a geometric Y-shaped halo ring that functions as either a crisp white or deep amber daytime running light (DRL).
What is missing from the box? You do not get vehicle-specific A-pillar or bumper mounting brackets, which is standard for universal auxiliary lighting. More notably, while the included wiring harness features weatherproof 3-pin Deutsch-style (DT) plugs, the dual-button cabin switch utilizes double-sided adhesive tape rather than an OEM-style dash knockout plate. If you drive a modern pickup and want a factory look, you will likely want to pair these pods with one of our tested multi-circuit auxiliary switch panels.
Hands-On Performance: What Our Testing Showed
To evaluate the Auxbeam V-Ultra pods properly, we mounted them on heavy-duty steel A-pillar ditch brackets on a 2021 mid-size pickup truck in central Ontario. Over a 21-day testing period in late winter, our test vehicle saw ambient temperatures ranging from +4°C down to -18°C, encountering heavy wet snow, highway salt spray, and pitch-black unmaintained forest access tracks. Before hitting the trails, we ran bench tests in our garage using a regulated 13.8-volt DC power supply, a digital clamp ammeter, a calibrated digital lux meter, and an infrared thermal camera.
Electrical Draw and Thermal Management
Lighting manufacturers routinely advertise raw theoretical LED chip wattages rather than actual power consumption. Auxbeam lists the V-Ultra 5-inch series at 160 watts per pair. When we clamped our ammeter onto the main power lead at a steady 13.8 volts—simulating a running truck alternator—our test pair drew a combined 9.72 amps right at startup. After running continuously for 30 minutes in a 15°C garage until thermal equilibrium was reached, the current settled at 9.45 amps, which equates to 130.4 watts of real-world draw (roughly 65.2 watts per pod). That is still an immense amount of electrical power for a 5-inch housing and comes impressively close to the marketed figures compared to cheaper budget pods that often draw half their advertised rating.
In DRL-only mode, power consumption is negligible. The white DRL halo drew just 0.58 amps (8.0 watts for the pair), while the amber DRL mode drew 0.54 amps (7.4 watts). Using our thermal imager after 45 minutes of stationary full-power operation indoors with zero airflow, the rear aluminum cooling fins peaked at 64.5°C, while the front polycarbonate lens reached 58.2°C. That lens warmth proved beneficial outdoors, melting light frost and freezing drizzle within four minutes of activation, though heavy wet slush kicked up at 80 km/h still required an occasional manual wipe at gas stops.
| Test Metric | Measured Result (Bare Lens) | Measured Result (Amber Cover) | Testing Notes |
|---|---|---|---|
| Real Power Draw (Pair @ 13.8V) | 134.1 Watts (Initial) / 130.4 Watts (Stabilized) | 130.4 Watts | Measured after 30-min thermal soak |
| Center Beam Intensity @ 50m | 412 Lux | 295 Lux | Roughly 28% output reduction with amber filter |
| Peripheral Ditch Spread @ 15m (60° Off-Axis) | 88 Lux | 61 Lux | Measured 15 metres out at a 60-degree angle |
| Maximum Usable Beam Distance (1 Lux) | 322 Metres | 268 Metres | Distance where newsprint remains readable |
| Colour Temperature (Main Beam) | 6380 Kelvin | 2950 Kelvin | Cool daylight white vs deep selective yellow |
| Housing Peak Temp (45-Min Static) | 64.5°C | 67.1°C | Amber cover traps minor surface heat |
Down-Trail Distance vs. Peripheral Side-Shooter Spread
Out on an open, flat hydro-line service trail, we staked out reflective markers at 50-metre intervals to measure the beam geometry. The six central spot optics punch out a remarkably tight central hot spot that reached 1 lux of illumination at 322 metres. To put that in practical Canadian driving terms, at 80 km/h on a remote gravel road, 322 metres gives you more than 14 full seconds of reaction time to spot a downed tree or a moose crossing the track.
Where the V-Ultra truly separates itself from standard round driving lights is the transition zone created by the side shooters. With the pods aimed straight ahead, usable flood light spills outward to a verified 195-degree effective arc in front of the truck. By rotating the pods just 12 degrees outward on their U-brackets, we achieved complete side-to-side coverage that illuminated the forest floor 25 metres into the trees perpendicular to our front bumper. Navigating tight switchbacks where the trail drops off into deep drainage ditches, being able to see the exact edge of the snowbank beside the front tires without leaning over the steering wheel completely changed our night-driving confidence.
Snow, Dust, and the Amber Cover Advantage
Bare 6380K white LEDs are fantastic on clear, dry nights, but anyone who has driven through a blinding Lake Superior snow squall knows that cool white light reflects right off falling snowflakes and creates a dazzling white wall of self-glare. Snapping the included translucent amber covers over the V-Ultra pods transforms their output into a warm 2950K selective yellow beam.
While our lux meter confirmed that the amber polycarbonate filters reduce peak centre intensity by about 28 percent, visual contrast in blowing snow and early-morning mist improved dramatically. The warmer wavelength cuts through airborne moisture with significantly less backscatter, reducing eye strain over a three-hour night drive. If you primarily use your vehicle for winter backroad commuting or dusty summer convoy trail rides, leaving the amber covers snapped on full-time is the smartest configuration. They also double as sacrificial rock shields against flying gravel kicked up by leading vehicles, much like the lens protection we praised in our guide to heavy-duty off-road light bars.
Living With It: Long-Term Notes
Over three weeks and roughly 1,400 kilometres of mixed highway and trail driving, the Auxbeam V-Ultra pods endured four automatic touchless car washes, repeated overnight freezes, and heavy road-salt accumulation. The IP68 waterproof seal held up flawlessly; we inspected the reflectors closely with a magnifying light after high-pressure undercarriage washes and found zero moisture ingress or internal fogging behind the lenses.
Auxbeam V-Ultra 5-Inch LED Pods Review: Wide-Angle Trail Dominance
We may earn a commission. Price and availability change.
Living with the lights daily did uncover a few practical quirks. First, the snap-on polycarbonate covers fit extremely tightly over the bezel tabs. At room temperature in the garage, swapping from the black street covers to the amber trail covers takes about ten seconds per light. However, when we stopped at a trailhead in -16°C weather, the cold plastic was so stiff that we nearly cracked a retention tab trying to pry the black cover off with gloved fingers. We quickly learned to turn the main beams on for three minutes with the black covers still attached; the radiant heat from the LEDs warms the bezel just enough for the covers to pop off effortlessly.
Second, the mounting bracket geometry uses a single central carriage bolt to secure the U-bracket to your vehicle mount, and two Allen-head side bolts with serrated lock washers to control vertical tilt. Over washboard gravel roads, the 1.12 kg pods showed zero vertical droop or vibration flutter—the serrated teeth bite firmly into the aluminum housing casting. However, you must apply blue threadlocker to the base bolt during installation, as extreme cold-to-warm thermal cycling loosened our passenger-side base nut slightly during the second week.
Finally, a note on acoustics and electronics: these pods are completely fanless, relying on passive convection through the rear fins, so they operate at 0 dB of exterior noise and did not generate any high-pitched whistling at 110 km/h highway speeds. Inside the cab, we tested them across the entire FM radio band and on a GMRS two-way trail radio; the internal LED drivers are well-shielded and produced zero electromagnetic static or radio frequency interference (RFI). The only audible sound is a distinct mechanical click from the under-hood relay module if you mount the relay box directly against a thin firewall panel.
Where It Falls Short
Despite their impressive output-to-price ratio, the Auxbeam V-Ultra 5-inch pods have real limitations that prospective buyers need to weigh before drilling or bolting into their rig. The most glaring omission is any form of optical cutoff. Because these use open reflector cups for the side shooters and deep conical projectors for the central spot, light scatters vertically as well as horizontally. You cannot aim these down at the pavement and use them as auxiliary fog lights in traffic; doing so will instantly blind oncoming drivers and attract immediate attention from provincial police.
The wiring harness, while generous in wire gauge (14 AWG main power leads that stayed cool under load), has two design compromises. First, the hardwired pigtail exiting the back of each pod is only 22 centimetres long. When mounted on A-pillar ditch brackets, the bulky 3-pin DT waterproof connector ends up resting right near the hood hinge pinch point rather than tucking cleanly deep into the engine bay. Adding another 15 centimetres to the factory pigtail would have made routing under the cowl plastic far cleaner. Second, the cabin controller combines the main beam switch and the DRL halo switch onto a single plastic puck with two push buttons and red/green status LEDs. Those status indicator LEDs are overly bright inside a dark truck cabin at night, forcing us to stick a small piece of tinted vinyl film over the switch face.
Lastly, the sheer physical footprint of a 5-inch round housing with side wings makes placement trickier than standard 3-inch cube lights. On trucks with steep windshield rakes or oversized tow mirrors that fold inward, you must measure your hood opening arc carefully so the rear cooling fins do not contact the windshield wiper cowl when the hood is raised for servicing.
How It Compares
The 5-inch round off-road pod segment spans a massive price range in Canada. To put the Auxbeam V-Ultra in perspective, we compared it against two established competitors we have evaluated in the same category: a popular budget contender and an American-made enthusiast benchmark. If you are also upgrading your factory forward headlamps at the same time, check out our roundup of cold-weather LED headlight bulbs to ensure your low beams match your auxiliary setup.
| Model | Price (CAD) | Key Spec | Best For |
|---|---|---|---|
| Auxbeam V-Ultra 5-Inch Side Shooter | $237.18 | 130.4W Measured / 270° Spread / Amber + Black Covers | All-around trail & ditch visibility on a sensible budget |
| Nilight 5-Inch 150W Round Side Shooter | $109.99 | 78W Measured / 180° Spread / No Lens Covers Included | Budget utility builds, ATVs, and tractor work lights |
| Baja Designs LP4 Pro (Pair) | $1,145.00 | 176W Measured / 200° IPT Spread / Serviceable Lenses | High-speed desert racing and extreme no-compromise builds |
Buy the Auxbeam V-Ultra 5-Inch Pods if: You want genuine high-output performance, integrated amber DRL functionality, and included protective lens covers without spending over a thousand dollars. For the vast majority of Canadian overlanders, hunters, and backcountry explorers driving below 90 km/h on trails, the Auxbeam delivers 80 percent of the optical performance of boutique brands at roughly one-fifth of the cost.
Buy the Nilight 5-Inch Side Shooter if: You are outfitting a farm tractor, a hunting ATV, or a beater bush truck where budget is the primary constraint. While our bench tests on the Nilight showed significantly lower real-world wattage draw and a noticeably dimmer central spot beam past 150 metres, it still floods the immediate work area effectively for just over a hundred bucks.
Buy the Baja Designs LP4 Pro if: You require replaceable copper circuit boards, user-serviceable O-ring lenses to swap beam patterns on the fly, and maximum possible raw candela for high-speed off-road racing. The LP4 Pro remains the gold standard for optical control and build pedigree, provided your budget can absorb the massive price jump.
Buying Advice
Auxbeam V-Ultra 5-Inch LED Pods Review: Wide-Angle Trail Dominance
We may earn a commission. Price and availability change.
When ordering the Auxbeam V-Ultra series in Canada, pay close attention to the size and shape variants on the listing page. Auxbeam sells the V-Ultra lineup in both a 4-inch square cube and this 5-inch round configuration. If you are mounting the lights inside a cramped front bumper recess or on a compact crossover SUV, step down to the 4-inch version. If you have a mid-size or full-size pickup truck (such as an F-150, Tacoma, Silverado, or Tundra) or a Jeep Wrangler, the 5-inch round model reviewed here provides two extra central LED diodes and noticeably deeper down-range throw.
As for accessories, the kit is genuinely ready to install out of the box if you already have mounting tabs on a bull bar or headache rack. If you plan to mount them at the base of your windshield, budget an extra CAD $45 to $85 for vehicle-specific steel ditch light brackets that bolt directly to your existing hood hinge bolts—this requires zero drilling into your truck's bodywork. We also highly recommend picking up a $12 pack of 6-inch nylon cable ties with UV resistance and a tube of dielectric grease to coat the rubber seals inside the 3-pin DT connectors before clicking them together, preventing winter road brine from wicking into the pins over multiple seasons.
Regarding warranty and pricing in Canada: purchasing through Amazon.ca provides the standard 30-day return window, backed by Auxbeam's 2-year manufacturer replacement warranty against burnt-out diodes or water intrusion. At its standard retail price of CAD $237.18, the kit is fairly priced for its output class. However, if your build isn't urgent, we frequently track 15% to 20% clip-on coupons or promotional drops on Auxbeam's storefront during Amazon Prime Day in July and Black Friday in November, which typically brings the pair down into the CAD $190 to $200 sweet spot.
The Verdict
The Auxbeam V-Ultra 5-Inch Side Shooter LED Pods hit a rare sweet spot in the crowded Canadian aftermarket lighting market. Too often, mid-priced auxiliary lights either flood the immediate foreground with unfocused glare or shoot a pencil-thin spot beam that leaves ditches completely pitch black. By combining six deep central projectors with canted side-shooting arrays, Auxbeam delivers a balanced 130.4-watt real-world beam that illuminates both 322 metres down the logging road and right beside your front fenders.
While the cabin switch is overly bright and the snap-on covers fight back when temperatures plunge below -15°C, the inclusion of both solid black street covers and high-contrast amber snow covers adds tremendous year-round versatility. Factor in the robust die-cast aluminum build and the included 3-pin DT harness, and our final score of 8.7 out of 10 is easily earned. For Canadian truck and trail drivers who want serious backcountry visibility without boutique pricing, these pods are an outstanding upgrade.
