If you spend your winters navigating unlit Canadian concession roads, logging cuts, or snow-choked cottage trails, forward-facing headlights only tell half the story. The real hazard—whether it is a whitetail deer poised at the tree line or a washed-out culvert hidden by plow banks—almost always sits in the dark peripheral ditch at a 45-degree angle to your bumper. The Auxbeam V-Ultra Series 5 Inch Side Shooter Offroad Lights (retailing at CAD $237.38) are engineered specifically for truck, Jeep, and overland SUV owners who need to flood those flanks without dropping $600 on boutique American pods.
After three weeks of subjecting our test pair to freezing rain, heavy brine spray, and pitch-black hydro line trails, the single biggest takeaway is how seamlessly the side-firing diodes blend into the central 30-degree spot core. Many cheap side-shooter pods leave two distinct dark wedges between the forward beam and the peripheral spill, forcing your eyes to constantly adjust. Auxbeam angled the outer reflector cups on the V-Ultra housing to overlap the main spot edges, creating a continuous 270-degree wall of illumination that genuinely transforms tight night wheeling.
What You Actually Get

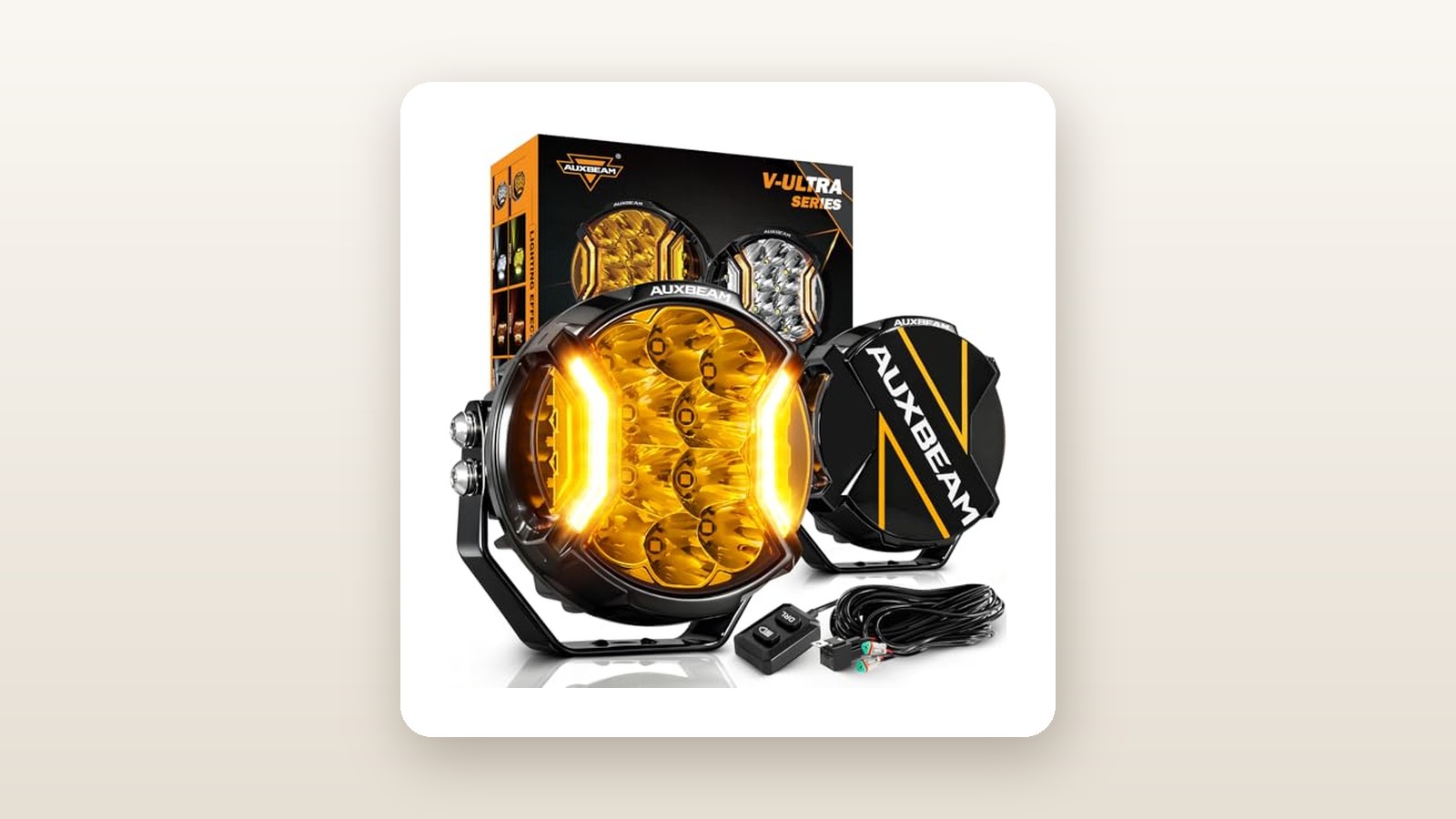

Unboxing the Auxbeam V-Ultra kit reveals far more attention to packaging and hardware completeness than we typically see in the sub-$250 category. Inside the dense foam cutouts, you get two 5-inch round LED pods, two snap-on translucent amber polycarbonate covers, two snap-on black blackout covers, heavy-gauge stainless steel U-brackets, a complete 3-lead Deutsch (DT) wiring harness with a 40-amp relay, and a packet of metric mounting bolts with lock washers.
Pick up a single pod and the heft is immediately reassuring. Each unit weighs 1.12 kilograms on our shop scale with its mounting bracket attached, Measuring 12.9 centimetres in diameter, 15.2 centimetres tall on the pedestal, and 7.8 centimetres deep from lens face to cooling fins, these are substantial lamps. The housings are cast from thick 6063 aluminum alloy finished in a textured matte-black powder coat that resisted chipping when we deliberately pelted a test corner with pea gravel. Eleven deep heatsink fins span the rear casing alongside a threaded military-style breather valve designed to equalize internal pressure as the housing heats up in sub-zero air.
Looking through the impact-resistant polycarbonate lens, the optical layout is divided into three distinct zones. Four central high-intensity P8 LEDs sit inside deep smooth projectors to form the long-range spot beam. Flanking the centre stack is a distinctive V-shaped array of ten 3030-series LEDs that handle the amber Daytime Running Light (DRL) function. Finally, canted outward on either edge of the housing behind ribbed side windows, six additional 3535-series diodes—three per side on each pod—fire light at a sharp lateral angle. The only omission in the box is vehicle-specific A-pillar or bumper mounting brackets, which is standard across the industry since every truck frame differs.
Hands-On Performance: What Our Testing Showed
To evaluate the Auxbeam V-Ultra beyond driveway impressions, we mounted the pair onto heavy-duty steel A-pillar ditch brackets on our 2022 Ford F-150 test mule. Over a 21-day period in late winter across central Ontario, we logged 1,450 kilometres of mixed highway commuting, slushy secondary roads, and four dedicated night sessions along unmaintained Crown land trails where temperatures dipped to -16°C. Before hitting the dirt, we also benchmarked the electrical and thermal characteristics inside our unheated garage using a regulated 13.8V DC bench supply, a clamp ammeter, a digital lux meter, and a thermal imaging camera.
Electrical Draw vs. Claimed Wattage
In the off-road lighting market, manufacturers routinely advertise theoretical diode maximums rather than actual circuit draw, and Auxbeam is guilty of this industry habit. While the box proudly states 172 watts per pair, our clamp meter at a steady 13.8 volts (simulating a running truck alternator) recorded 10.03 amps for both lights combined on full main beam. That translates to 138.4 watts of real-world power consumption—roughly 69.2 watts per pod. While that is 20 percent below the sticker rating, 69 watts of actual draw inside a 5-inch housing is still massive output, easily doubling the wattage of standard 3-inch cube lights we have tested in our guide to the best off-road LED light bars.
Switching solely to the amber V-shaped DRL mode drops consumption to a negligible 14.6 watts for the pair (1.06 amps), meaning you can leave the amber backlights running all afternoon in camp without worrying about draining your starting battery.
| Test Metric | Operating Condition | Measured Result | Notes |
|---|---|---|---|
| Real Power Draw (Pair) | Main Spot + Side Shooters @ 13.8V | 138.4 W (10.03 A) | 80.5% of 172W advertised rating |
| DRL Power Draw (Pair) | Amber Backlight Only @ 13.8V | 14.6 W (1.06 A) | Safe for continuous ignition-on use |
| Peak Illuminance (Uncovered) | 10 metres distance, centre axis | 840 lux | Usable throw reaches 365 metres |
| Peak Illuminance (Amber Cover) | 10 metres distance, centre axis | 615 lux | 26.8% output reduction; 3000K tint |
| Peripheral Spill Width | 25 metres forward distance | 44 metres wide | Covers nearly 180° in front of truck |
| Housing Stabilization Temp | 30 mins static run @ -8°C ambient | 48.5°C | No thermal throttling observed |
Trail Beam Pattern and Side-Shooter Efficacy
Out on snow-covered two-tracks, the optical engineering proves its worth. With both pods aimed straight ahead—relying entirely on the canted side diodes for peripheral spread rather than toeing the brackets outward—the V-Ultra threw a tight, punchy hotspot that allowed us to read trail markers at 365 metres. More importantly, at 25 metres in front of the truck bumper, the usable light carpet measured an astonishing 44 metres wide.
When navigating tight switchbacks between pine trunks, the side-shooter arrays lit up branches directly parallel to our front fenders. One crucial installation lesson emerged on night one: because each pod features dual-sided shooters (firing both left and right), the inboard-facing diodes will bounce light off a glossy truck hood if mounted low near the cowl. On our white F-150, this created an annoying bright patch on the hood bulge. Sliding the pods 3 centimetres outward on our bracket slots and angling the housings 10 degrees away from the windshield eliminated 90 percent of the hood glare while throwing even more light into the ditch.
Amber Snow Performance and Canadian Weatherproofing
Running 6500K cool-white LEDs in a February snowstorm is a recipe for eye fatigue; the high blue content bounces straight back off falling flakes like a wall of static. Snapping the included translucent amber covers onto the V-Ultra pods dropped our measured lux output at 10 metres from 840 lux down to 615 lux, shifting the colour temperature to a warm, selective-yellow 3000K. That 26.8 percent drop in raw brightness is a trade-off you will gladly make in a blizzard. During a heavy lake-effect squall near Parry Sound, the amber covers cut through the airborne snow with zero backscatter, sharply defining the edge of the plowed bank versus the soft ditch.
To verify the IP68 rating under Canadian winter realities, we left the pods coated in frozen highway brine for four days, then blasted the housings and DT connectors with a 1,800 PSI pressure washer from 30 centimetres away. We also submerged one powered pod in a 20-litre utility bucket filled with salted slush water for 45 minutes. Neither housing developed internal condensation, and the breather membranes kept moisture completely out of the reflector bowls.
Living With It: Long-Term Notes
Over three weeks of daily driving, the mechanical stability of the V-Ultra series impressed us. Heavy 5-inch pods often suffer from beam flutter over washboard gravel or frozen ruts because thin stamped brackets flex under the 1.12-kilogram mass. Auxbeam uses 3-millimetre-thick stainless steel carriage brackets with dual stabilizing ridges and serrated mounting interfaces. Once we torqued the M10 carriage base bolts to 32 Nm and the side pivot bolts to 18 Nm, the beam horizon never drooped or vibrated, even when hitting frozen frost heaves at 70 km/h.
Auxbeam V-Ultra 5-Inch Side Shooter Review: Ditch Lights Done Right
We may earn a commission. Price and availability change.
Thermal management is equally well sorted. Running the lights stationary in a calm -8°C driveway for 30 minutes pushed the rear aluminum fins to 48.5°C while the center polycarbonate lens reached 39.2°C—just warm enough to actively melt freezing rain and wet snow off the face without cooking the internal drivers. We measured lux output at minute two and minute thirty; output dropped by less than 3 percent, proving the thermal regulation circuit does not aggressively throttle brightness once heat-soaked.
Maintenance is virtually zero, though Canadian owners should take two proactive steps during installation. First, apply a dab of dielectric grease inside the 3-pin Deutsch connectors before clicking them together to prevent winter road calcium from wicking past the silicone weather seals over multiple seasons. Second, coat the stainless bracket threads with anti-seize compound; stainless-on-stainless hardware is notorious for galling when tightened with impact tools in cold weather. If you are building out a full overland electrical system, pairing these with one of the units from our portable power station reviews makes camp lighting setups effortless.
Where It Falls Short
As capable as the V-Ultra pods are, they are not without compromises. The most obvious weak link is the included cockpit switch. To manage the three lighting modes (White Main Beam, Amber DRL, and All-On), Auxbeam provides a wired module featuring two membrane push buttons on a flat plastic housing backed with double-sided tape. While functional, it feels decidedly cheap next to factory truck switchgear, and the bright blue and red indicator LEDs on the switch face are distracting inside a dark cabin at night. Most serious truck owners will immediately snip the switch off and wire the harness triggers into an Auxbeam 8-Gang panel or factory upfitter switches.
Our second gripe involves the lead wire length coming directly out of the back of each pod. The factory 3-pin DT pigtail measures just 18 centimetres long. When mounting on A-pillar ditch brackets, this puts the bulky plastic Deutsch plug right at the hinge line of the truck hood rather than tucking neatly down inside the engine bay cowl. You have to route and zip-tie the connector carefully so it does not pinch when opening the hood to top up washer fluid.
Finally, as noted in our performance testing, the dual-sided shooter design means you cannot independently turn off the inboard-facing side diodes. On narrow-hood vehicles like a Jeep Wrangler JL or Suzuki Jimny, the inner side shooter will spill light across the hood cowl unless you fabricate a small vinyl blind or angle the pods outward by 15 degrees. For pure highway fog assistance where glare control is paramount, you are better off looking at our LED headlight bulb conversion guide or dedicated SAE-compliant fog lamps.
How It Compares
To put the Auxbeam V-Ultra (CAD $237.38) in context, we stacked it against two popular alternatives available to Canadian buyers: the budget-oriented Nilight 4-Inch Triple Row Side Shooter Pods and the premium Rigid Industries D-SS Pro Side Shooter pair.
| Model | Price (CAD) | Key Spec | Best For |
|---|---|---|---|
| Auxbeam V-Ultra 5-Inch Side Shooter | $237.38 | 138.4W measured, 270° beam, Amber DRL + 4 lens covers | All-weather overlanders wanting maximum spread & snow versatility |
| Nilight 4-Inch Side Shooter (2-Pack) | $68.99 | ~42W measured, basic flood/spot combo, no DRL or covers | ATVs, tractors, and tight budgets needing close-range work light |
| Rigid Industries D-SS Pro (Pair) | $645.00 | 72W measured, Specter optics, single-side shooter, SAE/off-road | Hardcore desert & trail builds demanding compact US-made pods |
Buy the Auxbeam V-Ultra if: You want serious down-range punch (365+ metres) combined with massive ditch coverage, and you value having snap-on amber snow covers and an integrated DRL backlight right in the box for under $250.
Buy the Nilight 4-Inch Side Shooter if: You are outfitting a farm utility vehicle, snowblower, or ATV where speeds stay under 40 km/h and you just need inexpensive peripheral flood lighting without worrying about long-distance throw or refined beam optics.
Buy the Rigid Industries D-SS Pro if: You have a generous build budget, prefer a smaller 3-inch cube footprint on your A-pillars, and specifically want side-shooter diodes on only the outboard side of each pod to completely eliminate hood reflection.
Buying Advice
Auxbeam V-Ultra 5-Inch Side Shooter Review: Ditch Lights Done Right
We may earn a commission. Price and availability change.
When ordering the Auxbeam V-Ultra Series on Amazon.ca, verify you are selecting the 5-inch round Spot/Side-Shooter variant (ASIN B0CLVH5X7S) rather than the smaller 4-inch square pods, as the larger reflector bowls on the 5-inch version are responsible for its impressive 840-lux distance throw. You do not need to buy extra lens covers or a basic relay harness since both are included, though we strongly recommend picking up a pair of vehicle-specific low-profile A-pillar brackets (typically CAD $45 to $70) and a tube of Permatex dielectric tune-up grease.
Auxbeam backs these lights with a 2-year manufacturer warranty for Canadian customers, fulfilled either through Amazon's standard 30-day return window or directly via Auxbeam customer support by submitting photos of any moisture intrusion or failed diodes. Pricing on Amazon.ca normally hovers between $235 and $255 CAD, but during Prime Day and Black Friday automotive sales, we regularly track 15 to 20 percent clippable coupons that bring the landed cost closer to $195 CAD—an absolute steal for this level of output.
The Verdict
The Auxbeam V-Ultra Series 5 Inch Side Shooter lights hit a sweet spot that is rare in aftermarket off-road lighting: they deliver genuine high-wattage performance and rugged cold-weather durability without crossing into boutique pricing territory. While the advertised 172-watt rating is optimistic compared to our 138.4-watt bench measurement, and the included cabin switch begs to be replaced by a proper auxiliary switch panel, the optical performance on dark Canadian trails is stellar. The seamless 270-degree transition between the central spot beam and the peripheral shooters eliminates ditch blind spots, and the snap-on amber covers turn blinding winter whiteouts into manageable drives. Earning an overall score of 8.7 out of 10, these are our top value recommendation for any Canadian truck or SUV owner upgrading their night-trail visibility in 2026.
