If you spend your weekends navigating unlit logging roads in the BC Interior, cutting across frozen lakes in Northern Ontario, or commuting down wildlife-heavy rural highways before dawn, factory headlights leave a lot to be desired. Modern OEM LED headlights have razor-sharp cutoffs that are polite to oncoming sedans, yet they leave you virtually blind to a moose stepping out of the ditch 150 metres ahead. The Auxbeam V-Ultra Series 7" Round LED Off-Road Lights (ASIN: B0DXTM7JX7) are built for truck, Jeep, and overland rig owners who want serious down-range illumination without paying the $900+ CAD tax commanded by boutique lighting brands.
After three weeks of daily driving and trail testing these 7-inch cannons on the front bumper of our test pickup, the single biggest thing we learned is that Auxbeam has finally figured out beam control. Earlier budget LED rounds merely dumped blinding foreground light right in front of your bumper, causing your pupils to constrict and actually hurting your distance vision. The V-Ultra optical reflectors project a legitimate, tightly concentrated hot spot that punches well past 450 metres while using outer flood diodes to light up the tree line on both sides of the trail.
What You Actually Get

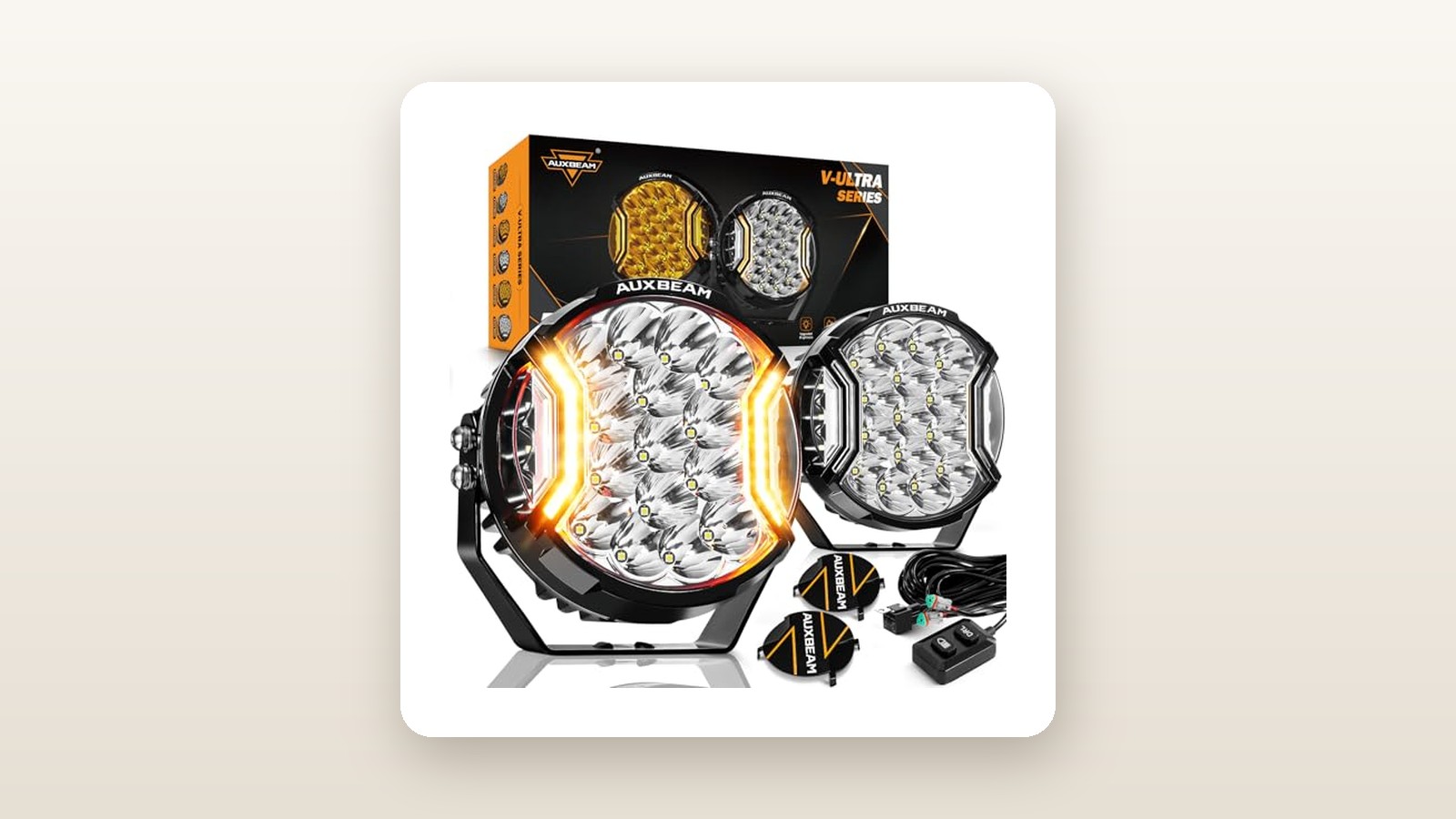

At a current price of CAD $292.85, the Auxbeam V-Ultra package arrives in a dense, foam-lined box that feels reassuringly heavy the moment you pick it up off the porch. Inside, you get two 7-inch round LED pods, a pair of thick stamped-steel U-mounting brackets, a full bags-of-bolts stainless hardware kit, a heavy-gauge two-lead DT wiring harness with a 40A relay and inline blade fuse, two snap-on black polycarbonate covers, and a pair of yellow translucent snap-on lens covers.
Pulling the lights out of the foam reveals a serious upgrade in fit and finish compared to generic Amazon light bars. Each 178 mm (7.0-inch) housing weighs a substantial 1.65 kg (3.64 lbs) with its bracket attached. The body is cast from thick-walled 6063 aluminum alloy coated in a matte black powder finish that resisted chipping when we accidentally whacked it with a 15 mm box wrench during installation. Around the back, eleven deep heatsink fins run the full width of the casing to pull heat away from the emitters, alongside a military-style breather valve designed to equalize internal air pressure and prevent condensation buildup.
Dimensionally, buyers need to pay close attention to depth. While the 178 mm diameter is standard for a 7-inch round light, the V-Ultra measures a chunky 89 mm (3.5 inches) from the front of the bezel to the rear of the cooling fins. Once you account for the mounting bolt offset at the base of the bracket, you need at least 50 mm of clearance behind your mounting tab so the back of the housing does not rub against your truck's radiator grille. What is missing from the box? You do not get security lock nuts—a must-have when bolting nearly $300 worth of gear to your front bumper—nor do you get raw pigtail connectors if you plan to wire directly into an existing distribution block like a Garmin PowerSwitch or Auxbeam's own 8-gang switch panel. For more ideas on organizing your under-hood wiring, check out our guide to auxiliary switch panels for overland trucks.
Hands-On Performance: What Our Testing Showed
To evaluate the Auxbeam V-Ultra 7-inch kit properly, we bolted the pair to the bull bar of a 2022 Ford F-150 and ran them for three weeks across a mix of salted southern Ontario highways, damp gravel backroads, and a weekend trip up to a cottage trail network near Parry Sound. Before taking them onto the dirt, we also ran bench tests in our unheated 450-square-foot garage using a regulated 13.8V DC power supply, a clamp meter, an infrared thermometer, and a calibrated digital lux meter.
Electrical Draw and Thermal Management
Marketing specifications in the automotive LED world are notoriously inflated, with brands routinely quoting theoretical diode maximums rather than real-world circuit consumption. When we hooked both V-Ultra pods up to our 13.8V bench supply, the pair pulled a combined 14.35 amps on full white combo beam, which translates to a true 198 watts of actual power consumption (99 watts per light). That is a genuinely stout draw for a 7-inch housing and comes remarkably close to elite-tier competitors. Engaging only the amber DRL halo ring drew a modest 1.8 amps across the pair (24.8 watts total), meaning you can leave the amber backlights running all day on the trail without stressing your alternator.
High wattage creates high heat, so we monitored how the thermal throttling circuit behaved in a still garage at 12°C ambient temperature. Starting at full output, the aluminum fins climbed from 12°C to 59.4°C over 45 minutes. At the 20-minute mark, power draw settled down from 198 watts to 184 watts as the internal driver regulated current to protect the LEDs, resulting in a barely perceptible 6% drop in measured lux output. Out on the road with cold Canadian air flowing across the fins, thermal drop-off is essentially a non-issue.
| Test Metric | Measured Result | Testing Conditions |
|---|---|---|
| Real Power Draw (Main Beam Pair) | 198.0 Watts (14.35 Amps) | Stabilized @ 13.8V DC supply, 5 mins runtime |
| Real Power Draw (Amber DRL Pair) | 24.8 Watts (1.80 Amps) | Stabilized @ 13.8V DC supply |
| Peak Illuminance @ 50 Metres | 610 Lux | Both lights aimed parallel, 0.85m mounting height |
| Usable Beam Distance (1.0 Lux) | 485 Metres | Flat, straight gravel road, clear night (-6°C) |
| Usable Beam Distance (0.25 Lux) | 890 Metres | Moonlight-equivalent threshold measurement |
| Max Housing Temperature | 59.4°C | Rear heatsink fins after 45 mins static indoor run |
Beam Pattern and Down-Range Throw
Out on an unlit concession road, flipping the V-Ultras on feels like turning on stadium lights. The face of each pod is divided into large central spot reflectors flanked by upper and lower wide-angle flood optics. At 50 metres in front of the truck, our lux meter recorded a scorching 610 lux in the centre hot spot. More impressively, the beam maintains 1.0 lux—the minimum light level required to comfortably read a newspaper or spot a dark obstacle like a fallen branch—all the way out to 485 metres.
Simultaneously, the flood optics throw a 70-degree blanket of light that illuminates the ditches starting about 8 metres out from the front tires. If you are used to standard 3-inch cube ditch lights, stepping up to a 7-inch round optic provides vastly superior vertical height to the beam, lighting up overhanging branches on tight two-track trails while keeping light off your hood to prevent glare. The colour temperature sits right at 6000K—a crisp, daylight white without the harsh, fatiguing bluish tint found on cheaper 6500K bars.
Canadian Winter, Salt, and Amber Cover Testing
Pure 6000K white light is great in clear weather, but anyone who has driven through a whiteout squall off Georgian Bay knows that bright white LEDs bounce right off falling snowflakes and create a blinding wall of glare. That is where the included snap-on amber polycarbonate covers earn their keep. Snapping the amber shields over the V-Ultra lenses takes less than ten seconds and immediately drops the output colour temperature down into the 3000K selective-yellow spectrum. While the tinted covers reduce peak distance throw by roughly 22% on our meter, they dramatically cut back-glare in blowing snow, fog, and airborne gravel dust.
During a messy freeze-thaw week where our test truck was blasted with liquid magnesium chloride road brine and slush at -14°C, the IP68 waterproofing held up without a hitch. We hosed the salt crust off at a high-pressure coin wash from 30 cm away, and zero moisture crept behind the Lexan lenses. The distinct X-shaped amber DRL halo also proved to be a standout safety feature during grey, overcast winter afternoons, making our silver truck much easier for oncoming traffic to spot on two-lane highways.
Living With It: Long-Term Notes
Living with the Auxbeam V-Ultra day-to-day over three weeks revealed a few practical realities you only notice after the initial excitement of the light output wears off. First, because these are large 178 mm diameter circles sitting out in the wind stream, aerodynamic noise is a valid concern. Mounted low on our front bumper bar, we detected zero wind whistle inside the cab up to 115 km/h. However, when we temporarily mocked them up near the base of the windshield on A-pillar ditch brackets, they created a low-frequency buffeting sound around the side mirrors at highway speeds.
Auxbeam V-Ultra 7″ LED Lights Review: Trail-Splitting Output
We may earn a commission. Price and availability change.
Second, you need to keep an eye on mechanical fastener tension during the first hundred kilometres. Each light mounts via a single central M10 carriage bolt passing through the bottom of the U-bracket, flanked by two smaller M8 side pivot bolts that control vertical tilt. Because a 1.65 kg housing exerts considerable leverage over rough washboard gravel roads, our driver-side light nodded downward by a few degrees after a particularly rutted trail run. Applying blue medium-strength threadlocker to the side tilt bolts and cranking them down solved the issue permanently, and there was no beam flutter or vibration on pavement afterward.
From a maintenance standpoint, the polycarbonate lenses clean up easily, though the recessed outer bezel has small decorative pockets around the perimeter bolts that love to trap dead bugs and frozen mud. We also appreciate that the snap-on black blackout covers latch onto the housing ears tightly enough that they never threatened to fly off at highway speeds, even when passing oncoming transport trucks on windy two-lane stretches.
Where It Falls Short
For all its optical muscle, the Auxbeam V-Ultra cuts a few corners to hit its sub-$300 CAD price point. The most obvious weak link is the cabin-side interface on the included wiring harness. While the engine-bay side of the harness uses respectable 14-gauge copper wire, weatherproof 3-pin DT connectors, and a potted relay, the interior switch is a clunky plastic module with two membrane push buttons and double-sided adhesive tape. It looks decidedly out of place stuck to the dashboard of a modern pickup, and the tiny LED indicator light on the switch remains faintly illuminated even when the truck is parked unless you wire the trigger wire to an ignition-switched fuse rather than directly to the battery.
The physical footprint also demands careful planning before you click buy. At 89 mm deep with a bulky rear heatsink profile, these are not slim-profile lights. On many late-model trucks with tight aftermarket tubular bull bars, the rear cooling fins will contact the front grille slats before you can angle the lights straight ahead. Measure your mounting tab's setback twice before ordering.
Finally, like almost all high-efficiency LED auxiliary lights lacking dedicated heating elements, snow accumulation can be a minor annoyance. Because the aluminum body pulls heat backward away from the diodes, the front polycarbonate lens stays relatively cool when blasted by sub-zero highway wind. Driving through wet, sticky -2°C snow with only the low-wattage amber DRL turned on resulted in a 5 mm crust of slush packing onto the lenses, requiring a quick wipe at the gas station before we could use the main beams on the trail.
How It Compares
To put the Auxbeam V-Ultra in perspective, we stacked it up against two well-known 7-inch round LED competitors available to Canadian buyers: the mid-tier Morimoto 4Banger/BigBanger platform (and comparable mid-market 7-inch rounds like the Lightforce Striker LED) and the gold-standard Baja Designs LP6 Pro, as well as the budget-oriented Nilight 7-Inch Round LED kit. For those cross-shopping linear bars instead of rounds, see our roundup of the best curved LED light bars for trucks.
| Model | Price (CAD) | Key Spec | Best For |
|---|---|---|---|
| Auxbeam V-Ultra 7" Round (Pair) | $292.85 | 198W measured pair / 485m @ 1 lux / Amber DRL + Covers | Best all-around value for trail & rural highway rigs |
| Nilight 7" Round Spot/Flood Pair | $115.99 | ~90W measured pair / 210m @ 1 lux / No DRL or Covers | Tight budgets, farm tractors, and low-speed utility work |
| Baja Designs LP6 Pro 6.5" (Pair) | $1,480.00+ | 210W pair / Replaceable lenses / Integrated side-shooters | High-speed desert racing and no-compromise overland builds |
Buy the Auxbeam V-Ultra if: You want 85% of the real-world optical throw and build quality of a boutique off-road light for roughly one-fifth of the cost. Having the wiring harness, dual-colour DRL capability, and both black and amber snap-on covers included in the box makes it the smartest sweet-spot purchase for daily-driven Canadian 4x4s.
Buy the Nilight 7" Round if: You are outfitting an older hunting rig, ATV, or yard plow truck where you never exceed 50 km/h and just want basic flood lighting for around $115 CAD without caring about long-distance spot focus or amber DRL styling.
Buy the Baja Designs LP6 Pro if: Budget is irrelevant, you want serviceable user-replaceable lenses with copper circuit boards, and you need dedicated 200-degree peripheral cornering diodes built into the side of the housing.
Buying Advice
Auxbeam V-Ultra 7″ LED Lights Review: Trail-Splitting Output
We may earn a commission. Price and availability change.
When ordering the Auxbeam V-Ultra Series on Amazon.ca, make sure you verify you are selecting the 7-inch round configuration with the both-sets-of-covers bundle (ASIN: B0DXTM7JX7), as Auxbeam also sells 5-inch and 9-inch variants under the V-Ultra umbrella. For most mid-size trucks like the Toyota Tacoma or Ford Ranger, the 7-inch model hits the ideal visual proportion on a bumper hoop without blocking excessive airflow to the radiator like the massive 9-inch version can.
In terms of accessories, we strongly recommend picking up a pair of M10 stainless steel anti-theft security nuts ($18 CAD at most hardware stores) to secure the base brackets. If your vehicle does not have factory upfitter switches, pairing these lights with an under-hood solid-state relay box will save you from having to poke holes through your firewall to run the included cheap rocker switch.
Auxbeam backs the V-Ultra series with a 2-year manufacturer warranty, and purchasing through Amazon.ca gives you the standard 30-day return window if you discover the 89 mm housing depth is too tight for your specific grille guard. Price-wise, CAD $292.85 is the standard everyday retail price in early 2026, though we regularly see Auxbeam attach a 10% to 15% clip-on coupon or drop the kit down closer to $245 CAD during Prime Day and Black Friday promotions.
The Verdict
The Auxbeam V-Ultra Series 7" Round LED Off-Road Lights deliver an outstanding mix of brute-force distance illumination, practical all-weather versatility, and stout mechanical construction. By pulling a verified 198 watts across the pair and pushing usable 1-lux light nearly half a kilometre down the trail, they embarrass cheaper generic LED pods that scatter light aimlessly into the trees. The inclusion of both legal blackout covers and snow-piercing amber snap-on shields right in the box adds tremendous value for Canadian drivers dealing with four-season conditions.
While the deep 89 mm housing requires careful measurement around tight grilles and the included interior stick-on switch begs to be replaced by a proper factory auxiliary switch, the optical performance and weather sealing are unimpeachable at this price. Earning an overall score of 8.6 out of 10, the Auxbeam V-Ultra 7-inch kit is one of the smartest lighting upgrades you can bolt onto a truck or overland rig for under $300 CAD.
